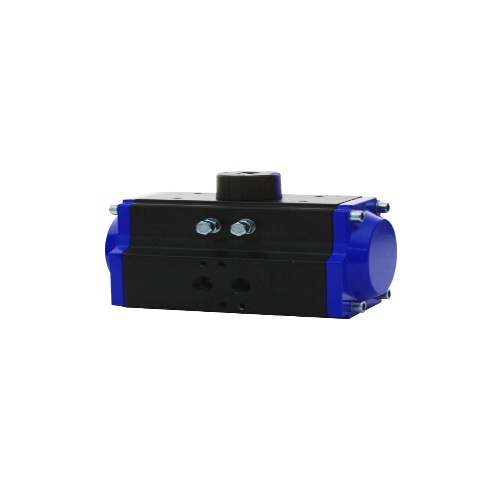

Dwyer ACT-MI08-24VDC Pneumatic/Electric Actuator

Dwyer ACT-MI08-24VDC is a pneumatic and electric actuator designed for hazardous locations with an enclosure rating of NEMA 7. It has a temperature range of -40 to 140°F (-40 to 60°C) and can be powered by 110 VAC, 220 VAC, 24 VAC, or 24 VDC. With a maximum supply pressure of 120 psi (8.6 bar), it features a double-acting or spring return (rack and pinion) type and includes a position indicator and two limit switches. It is made of powder coated aluminum and has various electrical connection options. The supply pressure for the DA series is 40 to 115 psi (2.7 to 7.9 bar) and 80 psi (5.5 bar) for the SR series. It has a modulating input of 4 to 20 mA and accessory mounting that complies with the NAMUR standard. The power consumption, cycle time, duty rating, and additional details are available in the instruction manual. Specifications (Instrument-Sensor) Supply Voltage 24 VDC (Instrument-Sensor) NEMA Protection NEMA 7 (Instrument-Sensor) Supply Voltage 24 VAC (Instrument-Sensor) Supply Voltage 110 VAC Component Actuator (Instrument-Sensor) Hazardous Location Class Class I – Group C & D; Class II – Group E-G; Division I & II (Instrument-Sensor) Temperature Range -40 – 140°F/-40 – 60°C Sub Component Pneumatic/Electric Actuator (Instrument-Sensor) Supply Voltage 220 VAC Manufacturer Dwyer Instruments Features ISO 5211 Mounting configuration for easy installation Pneumatic actuators offer corrosion resistance anodized finish NAMUR mounting configuration on pneumatic actuators Two-position electric actuators include auxiliary limit switches Modulating electric actuators offer an output for position monitoring Be the first to review “Dwyer ACT-MI08-24VDC Pneumatic/Electric Actuator” Cancel replyYour email address will not be published. Required fields are marked *Your rating of this product Rate… Perfect Good Average Not that bad Very poor Name * Email * Save my name, email, and website in this browser for the next time I comment. Reviews There are no reviews yet.
