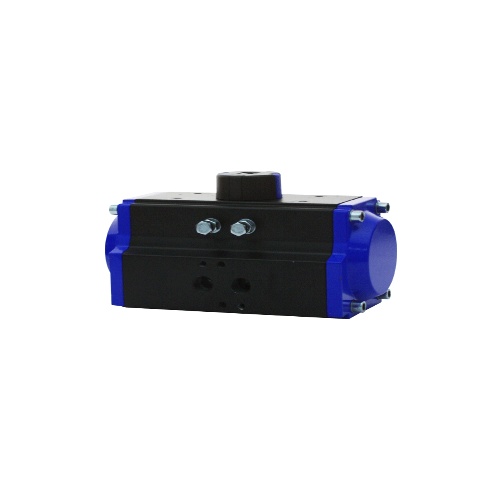

Dwyer ACT-MI09-110VAC Pneumatic/Electric Actuator

Dwyer ACT-MI09-110VAC is a pneumatic and electric actuator suitable for temperatures ranging from -40 to 140°F (-40 to 60°C). It operates on 110 VAC, 220 VAC, 24 VAC or 24 VDC power, and has a NEMA 7 enclosure rating for hazardous locations. Featuring a powder-coated aluminum construction, this actuator offers multiple connection options and is available in double-acting (DA) and spring-return (SR) types. Standard features include a position indicator and two limit switches. The maximum supply pressure is 120 psi (8.6 bar), and the supply pressure ranges from 40 to 115 psi (2.7 to 7.9 bar) for DA type and 80 psi (5.5 bar) for SR type. With a modulating input range of 4 to 20 mA and NAMUR standard accessory mounting, this actuator can be customized to suit various applications. Duty rating and cycle time can be found in the instruction manual. Specifications (Instrument-Sensor) Supply Voltage 24 VDC (Instrument-Sensor) NEMA Protection NEMA 7 (Instrument-Sensor) Supply Voltage 24 VAC (Instrument-Sensor) Supply Voltage 110 VAC Component Actuator (Instrument-Sensor) Hazardous Location Class Class I – Group C & D; Class II – Group E-G; Division I & II (Instrument-Sensor) Temperature Range -40 – 140°F/-40 – 60°C Sub Component Pneumatic/Electric Actuator (Instrument-Sensor) Supply Voltage 220 VAC Manufacturer Dwyer Instruments Features ISO 5211 Mounting configuration for easy installation Pneumatic actuators offer corrosion resistance anodized finish NAMUR mounting configuration on pneumatic actuators Two-position electric actuators include auxiliary limit switches Modulating electric actuators offer an output for position monitoring Be the first to review “Dwyer ACT-MI09-110VAC Pneumatic/Electric Actuator” Cancel replyYour email address will not be published. Required fields are marked *Your rating of this product Rate… Perfect Good Average Not that bad Very poor Name * Email * Save my name, email, and website in this browser for the next time I comment. Reviews There are no reviews yet.
