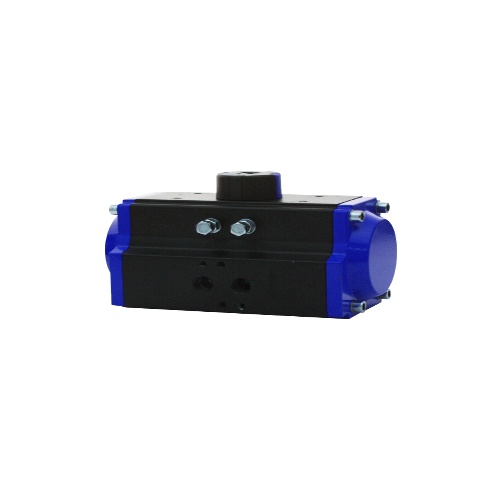

Dwyer ACT-MI09-24VAC Pneumatic/Electric Actuator

Dwyer ACT-MI09-24VAC is a pneumatic and electric actuator designed for hazardous locations. It has a temperature range of -40 to 140°F and can be powered by 110 VAC, 220 VAC, 24 VAC, or 24 VDC. The enclosure is NEMA 7 rated and made of powder-coated aluminum. It features a position indicator, two limit switches, and NAMUR standard accessory mounting. The DA series is double-acting, while the SR series is spring return. Connections range from 1/8" to 1/4" female NPT. Maximum supply pressure is 120 psi, and supply pressure ranges from 40 to 115 psi for DA and 80 psi for SR. Modulating input is 4 to 20 mA. Specifications (Instrument-Sensor) Supply Voltage 24 VDC (Instrument-Sensor) NEMA Protection NEMA 7 (Instrument-Sensor) Supply Voltage 24 VAC (Instrument-Sensor) Supply Voltage 110 VAC Component Actuator (Instrument-Sensor) Hazardous Location Class Class I – Group C & D; Class II – Group E-G; Division I & II (Instrument-Sensor) Temperature Range -40 – 140°F/-40 – 60°C Sub Component Pneumatic/Electric Actuator (Instrument-Sensor) Supply Voltage 220 VAC Manufacturer Dwyer Instruments Features ISO 5211 Mounting configuration for easy installation Pneumatic actuators offer corrosion resistance anodized finish NAMUR mounting configuration on pneumatic actuators Two-position electric actuators include auxiliary limit switches Modulating electric actuators offer an output for position monitoring Be the first to review “Dwyer ACT-MI09-24VAC Pneumatic/Electric Actuator” Cancel replyYour email address will not be published. Required fields are marked *Your rating of this product Rate… Perfect Good Average Not that bad Very poor Name * Email * Save my name, email, and website in this browser for the next time I comment. Reviews There are no reviews yet.
