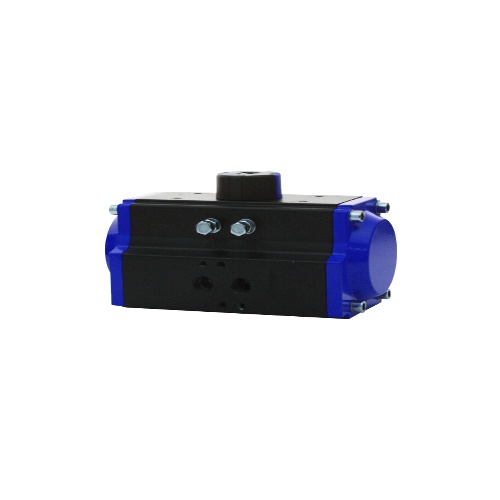

Dwyer ACT-MI09-24VDC Pneumatic/Electric Actuator

Dwyer ACT-MI09-24VDC is a versatile pneumatic and electric actuator suitable for a wide temperature range (-40 to 140°F) and hazardous locations. It offers multiple power options (110 VAC, 220 VAC, 24 VAC or 24 VDC) and comes with a NEMA 7 enclosure rating. The actuator features various connection sizes and has a maximum supply pressure of 120 psi. It is available in both double-acting and spring return types, and includes a position indicator and two limit switches as standard features. The duty rating and modulating input can be found in the instruction manual. Specifications (Instrument-Sensor) Supply Voltage 24 VDC (Instrument-Sensor) NEMA Protection NEMA 7 (Instrument-Sensor) Supply Voltage 24 VAC (Instrument-Sensor) Supply Voltage 110 VAC Component Actuator (Instrument-Sensor) Hazardous Location Class Class I – Group C & D; Class II – Group E-G; Division I & II (Instrument-Sensor) Temperature Range -40 – 140°F/-40 – 60°C Sub Component Pneumatic/Electric Actuator (Instrument-Sensor) Supply Voltage 220 VAC Manufacturer Dwyer Instruments Features ISO 5211 Mounting configuration for easy installation Pneumatic actuators offer corrosion resistance anodized finish NAMUR mounting configuration on pneumatic actuators Two-position electric actuators include auxiliary limit switches Modulating electric actuators offer an output for position monitoring Be the first to review “Dwyer ACT-MI09-24VDC Pneumatic/Electric Actuator” Cancel replyYour email address will not be published. Required fields are marked *Your rating of this product Rate… Perfect Good Average Not that bad Very poor Name * Email * Save my name, email, and website in this browser for the next time I comment. Reviews There are no reviews yet.
