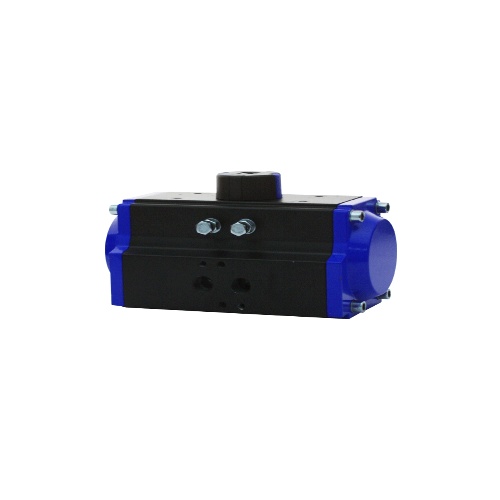

Dwyer ACT-TI08-12VDC Pneumatic/Electric Actuator

Dwyer ACT-TI08-12VDC is a pneumatic and electric actuator designed for hazardous locations. With a temperature range of -40 to 140°F (-40 to 60°C) and power requirements of 110 VAC, 220 VAC, 24 VAC, or 24 VDC, it offers flexibility and reliability. Featuring NEMA 7 enclosure rating, this actuator is constructed with powder coated aluminum and offers various electrical connections ranging from 1/8" to 1/2" female NPT. It is equipped with a position indicator, two limit switches, and follows the NAMUR standard for accessory mounting. Suitable for both double-acting and spring return applications, the ACT-TI08-12VDC ensures efficient performance with a maximum supply pressure of 120 psi (8.6 bar) and a supply pressure range of 40 to 115 psi (2.7 to 7.9 bar) for DA series and 80 psi (5.5 bar) for the SR series. Additionally, it supports modulating input of 4 to 20 mA. A detailed instruction manual is provided for power consumption, cycle time, duty rating, and other specifications. Specifications (Instrument-Sensor) Supply Voltage 24 VDC (Instrument-Sensor) NEMA Protection NEMA 4X (Instrument-Sensor) Supply Voltage 24 VAC (Instrument-Sensor) Supply Voltage 110 VAC Component Actuator (Instrument-Sensor) Temperature Range -40 – 140°F/-40 – 60°C Sub Component Pneumatic/Electric Actuator (Instrument-Sensor) Supply Voltage 220 VAC Manufacturer Dwyer Instruments (Instrument-Sensor) Hazardous Location Class Class I – Div. I & II Features ISO 5211 Mounting configuration for easy installation Pneumatic actuators offer corrosion resistance anodized finish NAMUR mounting configuration on pneumatic actuators Two-position electric actuators include auxiliary limit switches Modulating electric actuators offer an output for position monitoring Be the first to review “Dwyer ACT-TI08-12VDC Pneumatic/Electric Actuator” Cancel replyYour email address will not be published. Required fields are marked *Your rating of this product Rate… Perfect Good Average Not that bad Very poor Name * Email * Save my name, email, and website in this browser for the next time I comment. Reviews There are no reviews yet.
